More About This Product

EziBlank® Wall (EZIWALL) rack replacement panels provide a cost effective solution to preventing hot air recirculation when racks are moved from an aisle containment system or rack row.

EziBlank® Wall (EZIWALL) rack replacement panels offer a simple and low cost solution and are assembled within minutes, creating a rack sized airflow barrier that can be positioned anywhere and re-used again and again.

SKU: 46-EZIBLANK-WALLCategories: , ,

EziBlank Wall Rack Replacement Panels

EziBlank Wall (EZIWALL) rack replacement panels provide a simple, cost effective rack sized airflow barrier that prevents hot air recirculation when racks are moved from an aisle containment system or rack row. There design enables them to be positioned anywhere and re-used again and again.

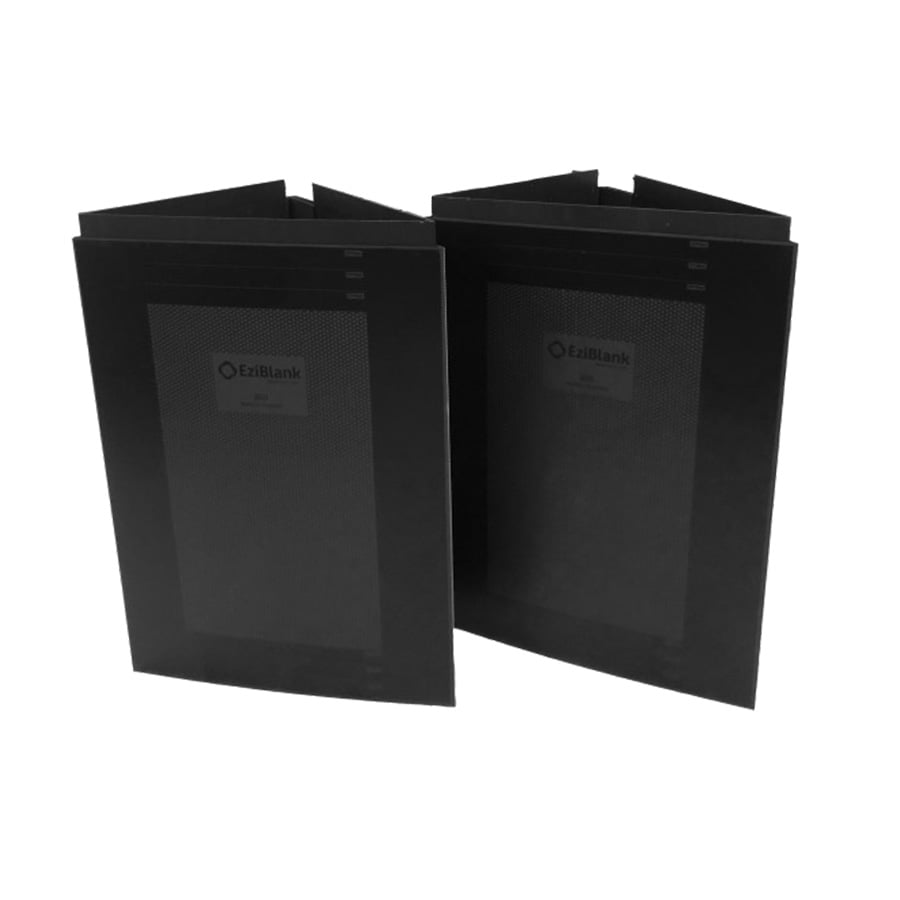

EziBlank® Wall (EZIWALL) rack replacement panels are assembled from two individual 23U sections that are supplied as flat sheets and are quickly built into a strong, stable triangular structures that can be used singularly for 23U racks or stacked to fill gaps between 46U high racks. Also, by simply rotating the triangular panel it will fit rack spaces of 600mm, 750mm or 800mm.

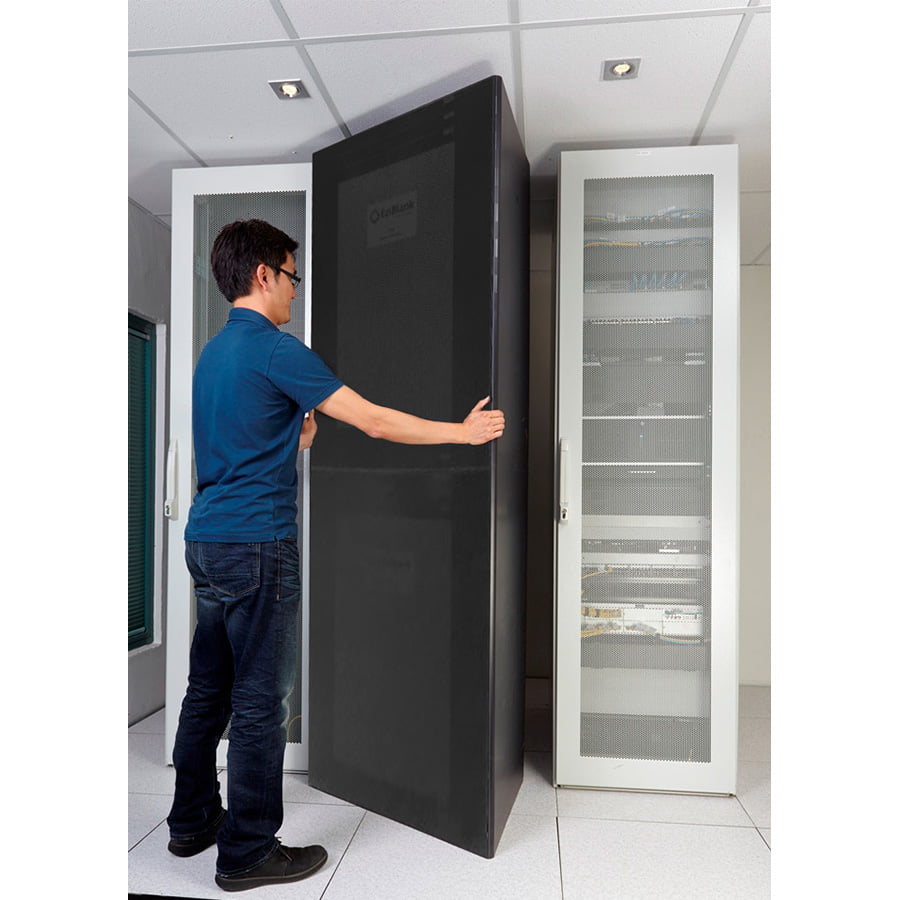

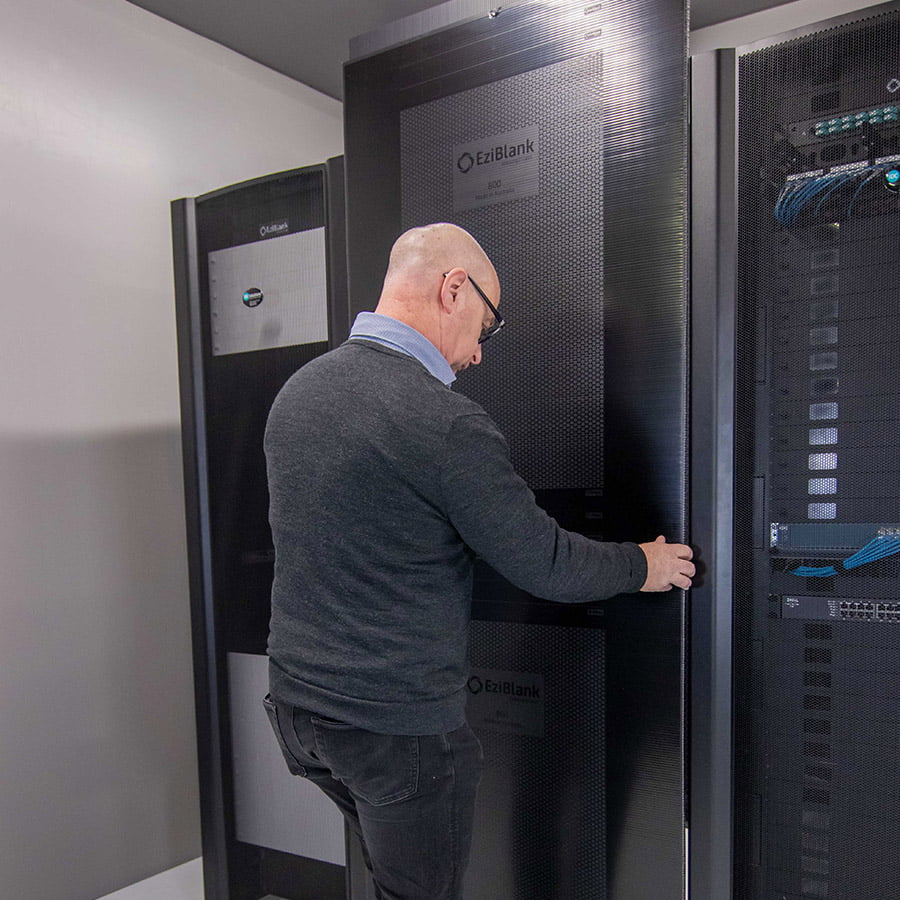

Using EziBlank® Wall (EZIWALL) rack replacement panels to fill the space left in the row when racks are moved, helps prevent the hot air exhaust air recirculating from the hot aisle into the cold aisle.  Preventing this helps to maintain the airflow dynamics within the Data Centre, lower your PUE and compliments Data Centre cooling efficiency strategies.

EziBlank Wall is an effective solution with most adopters finding a typical payback within two weeks, although some Data Centres have experienced payback within 24 hours!

Specifications

EziBlank® Wall (EZIWALL) Specifications

  • Part Number: 46-EZIBLANK-WALL – 2 x 23U panels per pack.  Supplied flat packed, EziBlank Wall suits rack spaces up to 46U high when stacked together and 600, 750 or 800mm wide. Black.
  • Dimensions: 2310mm x 1090mm x 2.
  • Shipping Dimensions: 1100mm x 900mm x 50mm.
  • Weight: 7Kg per pack of 2.
  • Material: Flame retardant, impact & water resistant. Twin walled 6mm polypropylene sheet.
  • Colour: Black.
  • Standards: Flame retardant to UL V-2 / UL94. Comply with AS/NZS 1530.3 – 1999. Methods for fire tests on building materials, components and structures. Simultaneous determination of ignitability, flame propagation, heat release and smoke release.
