The Importance of Floor Grommets in Data Centres

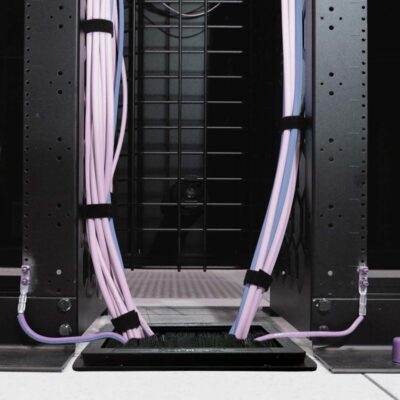

Floor Grommets in Data Centre Raised FloorFloor grommets are a vital component in managing the efficiency of Data Centres.

Data Centres are complex environments meticulously designed to house critical IT infrastructure. Servers, network devices, and storage systems generate significant heat as they process and manage vast amounts of data. Data Centre Managers must maintain optimal temperatures in these centres. Too much heat can cause equipment to fail, lower performance, or even lead to serious problems. To achieve this, they efficiently manage the flow of air by ensuring that cool air reaches heat-producing IT equipment without mixing with hot air. Preventing these two air streams from mixing is paramount to efficient airflow management. A small but crucial component in this process is the floor grommet.

This article will look at the important role of floor grommets in Data Centres. We will outline the types available and show why using them is key for good airflow management and its benefits.

We will explore:

  1. What are Floor Grommets?
  2. Benefits of Raised Floor Grommets.
  3. Different Types of Floor Grommets.
  4. Why Using Floor Grommets is Important for Managing Raised Floor Airflow.

What are Floor Grommets?

Floor grommets, also called raised floor grommets, are rubber, metal, or plastic inserts. They seal cable openings in the raised floor tiles of a Data Centre. They primarily create a snug seal around cables, conduits, pipe work, and other penetrations passing through the floor.

Floor grommets stop air from leaking from the raised floor plenum. This plenum is the space under the raised floor for cooling air. By preventing air from leaking from the raised floor plenum (the space beneath the raised floor used for cooling air distribution) into the IT white space above, floor grommets help maintain controlled airflow management. This control is essential to keep the Data Centre operating at optimal temperatures and to ensure overall energy efficiency.

Benefits of Raised Floor Grommets

Utilising floor grommets in a raised floor environment provides a multitude of significant advantages, making your Data Centre more efficient, dependable, and manageable:

  • Improve Airflow Management: Unsealed cable openings in raised floors unintentionally allow conditioned air to escape. When you install floor grommets, you seal the openings. This helps the conditioned air from the perforated tiles reach where you need it. It cools your important IT equipment. Optimising airflow in this way is crucial for maintaining optimal operating temperatures throughout your Data Centre.
  • Enhance Cooling Efficiency: By reducing bypass airflow, floor grommets help your cooling systems work more efficiently. Reducing wasted conditioned air helps your cooling units run at lower fan speeds. This saves energy and lessens wear on your cooling equipment.
  • Reduce Hot Spots: Uncontrolled air leakage can create localised hot spots that threaten equipment performance and stability. Using floor grommets in your airflow management plan helps keep a steady, even temperature in your Data Centre. This reduces the risk of these hot spots and ensuring uniform cooling across all your server racks.
  • Increase Energy Efficiency and Achieve Cost Savings: When you optimise airflow management with floor grommets, you lower the workload on your cooling systems and reduce energy consumption. This means you will save a lot on your energy bills. Floor grommets are a smart investment for the long term.
  • Improve Equipment Reliability and Lifespan: By maintaining optimal temperatures with effective airflow management, you protect your IT equipment from overheating—a major cause of hardware failure. Installing floor grommets helps keep cooling steady. This leads to better equipment reliability and a longer lifespan. It also reduces costly replacements and downtime.
  • Achieve Better Cable Management: The design of floor grommets helps you organise and secure cables as they pass through the floor, thanks to features like cable dividers, strain relief mechanisms, and dedicated cable channels. With organised cable routing, you benefit from a cleaner, safer, and more manageable Data Centre, which simplifies both maintenance and troubleshooting.
  • Enhance Fire Safety: You can select floor grommets made with fire-resistant materials that meet industry standards. These grommets help keep your raised floor fire-resistant. They stop fire from spreading quickly through cable holes. This buys important time for emergency responders.
  • Reduce Contaminant Ingress: Raised floors often allow dust, debris, and airborne contaminants to enter equipment white spaces. Professionally installed and sealed floor grommets help keep out dirt and dust entry from below. This creates a cleaner environment. A cleaner space improves equipment reliability and reduces maintenance needs. It also prevents dust buildup, which can cause overheating and equipment failures.

Using floor grommets in a raised floor environment offers a comprehensive way to optimise your Data Centre infrastructure. You improve airflow, enhance cooling efficiency, increase energy savings, boost equipment reliability, and create a more sustainable, cost-effective, and high-performing operation.

Different Types of Floor Grommets

Floor grommets are important in modern buildings. They help route cables safely and neatly through raised floors and other surfaces. They protect cables from damage, prevent tripping hazards, and preserve the aesthetic integrity of the space. Manufacturers offer floor grommets in various materials, shapes, and designs to accommodate diverse cable management needs and floor tile specifications. By understanding the diverse types of grommets, you can select the most appropriate solution for your specific application.

Here is a breakdown of common types of floor grommets:

  • Brush Grommets: These grommets use dense, flexible bristles made of nylon or other synthetic materials to form a dynamic seal around cables as they pass through the floor opening. The bristles effectively block dust, debris, and airflow while still allowing for easy cable movement, additions, and removals. Facilities such as Data Centres, server rooms, and offices commonly use brush grommets like KoldLok raised floor grommets, as their flexibility minimises the risk of cable damage during installation and operation and supports frequent cable changes.
  • Split Grommets: Manufacturers specifically design split grommets for retrofitting around existing cables without requiring disconnection or downtime. These grommets, which consist of two or more interlocking pieces, fit around the cable bundle. Installers can quickly upgrade cable pathways or add new cables to established installations with minimal disruption because the split design enables fast, hassle-free installation.
  • Solid Grommets with Flexible Membranes: These grommets provide robust and reliable sealing solutions. A solid frame, typically made of plastic or metal, holds one or more flexible membranes or diaphragms made of rubber or similar elastomeric material. Installers can easily pierce these membranes to accommodate various sized cables, ensuring a tight and secure seal around each cable. Cleanrooms and laboratories, where air sealing and dust prevention are critical, often benefit the most from this type of grommet.
  • Gasketed Grommets: Gasketed grommets use rubber, foam, or other compressible gaskets to create a compression seal around cables. When you install these grommets, the gasket compresses between the grommet frame and the floor tile, efficiently blocking airflow and preventing the entry of dust and debris. Telecommunications facilities often rely on these grommets to maintain stable temperatures and prevent contamination.
  • Tool-Less Grommets: Tool-less grommets enable quick and easy installation and removal without specialised tools. They typically feature a snap-fit or twist-lock mechanism, allowing you to install or remove them by hand. These grommets significantly reduce installation time and labour costs and suit applications that require frequent cable changes or ongoing maintenance.
  • Fire-Rated Grommets: Manufacturers construct fire-rated grommets with fire-resistant materials to maintain the fire rating of the floor assembly. These grommets block the spread of fire and smoke through cable openings, protecting occupants and property in the event of a fire. Commercial buildings, hospitals, and other places with strict fire safety rules often use these grommets. They usually have intumescent materials that expand and seal openings when it gets very hot.

The choice of grommet type will depend on a variety of factors, including:

  • Number and Size of Cables: Assess the number of cables and what diameters need to pass through the grommet. Larger cable bundles may require larger grommets or multiple smaller ones.
  • Need for Future Cable Additions: If you expect to add more cables in the future, choose grommets like brush or split grommets that make cable additions easy.
  • Required Level of Sealing: Identify the level of air sealing and dust protection your application needs. Gasketed grommets and solid grommets with flexible membranes often provide the best sealing.
  • Fire Safety Requirements: If fire safety is a concern, select fire-rated grommets that meet building codes and standards.
  • Budgetary Considerations: Determine your budget, since grommet prices vary depending on type, material, and features.
  • Ease of Installation: Choose a grommet that matches the skill level of your installation team and reduces installation time.

Carefully consider these factors to select the most appropriate floor grommet type for your specific cable management needs and ensure a safe, organised, and professional-looking installation.

Why Using Floor Grommets is Important for Managing Raised Floor Airflow

In a raised floor Data Centre, the sub-floor plenum acts as a critical pathway for delivering cool air to the IT equipment. Openings in the floor tiles, necessary for cable routing, create pathways for this conditioned air to escape uncontrolled. This bypass airflow diminishes the effectiveness of the cooling system in two primary ways:

  1. Reduced Cooling Capacity: Because cool air escapes into the room instead of cooling equipment, cooling units must work harder, increasing energy consumption to maintain server inlet temperatures.
  2. Uneven Temperature Distribution: Bypass airflow can lead to areas receiving insufficient cooling while others might be overcooled, creating inefficient and potentially damaging temperature gradients.

Floor grommets are important for reducing bypass airflow. They help you take control of your Data Centre’s temperature. By effectively sealing these cable openings, you prevent the uncontrolled escape of cool air.

This action helps conditioned air move up through perforated tiles. It then goes into the equipment racks. This process cools servers and other IT equipment efficiently.

Controlled airflow is fundamental for:

  • Optimising Cooling Delivery: Floor grommets help ensure that cool air reaches its intended target—the intake vents of IT equipment—with maximum efficiency. By eliminating bypass airflow, you maximise the volume of cool air that directly contributes to server cooling, which leads to improved performance and system stability.
  • Creating a Predictable Thermal Environment: Sealing gaps in the raised floor allows you to calculate airflow accurately and design effective cooling strategies. With predictable airflow patterns, Data Centre Managers can confidently optimise cooling unit settings, place equipment strategically based on heat load and address potential thermal issues proactively before they escalate. This predictability enables better planning, resource allocation, and overall data centre management.
  • Supporting High-Density Deployments: As Data Centres increasingly adopt higher power density equipment to maximise space utilisation and computing power, effective airflow management becomes even more critical. High-density racks produce significantly more heat, which makes them especially vulnerable to the negative effects of bypass airflow.

Grommets are important for managing airflow. They help prevent overheating in tough environments and help ensure that servers receive the necessary cool air to operate reliably and efficiently. Effective airflow management prevents equipment failure, performance throttling, and costly downtime in high-density deployments.

Benefits This Provides to Data Centres

When you use floor grommets in a Data Centre, you actively manage airflow and unlock significant, multifaceted benefits. Floor grommets seal cable openings in raised floors, so they prevent bypass airflow and ensure conditioned air reaches the equipment that needs it most. Through effective airflow management, floor grommets help deliver a cascade of positive effects:

  • Lower Operating Costs: Inefficient cooling drains energy in Data Centres. When you optimise airflow using grommets, you lighten the workload on cooling systems (CRAC units, chillers, etc.). This action reduces energy consumption and saves operational expenditure. You can reinvest these savings into other areas of your business. By reducing strain on cooling equipment, you also lower maintenance and repair costs.
  • Increased Capacity and Density: With improved airflow management, you can confidently deploy more equipment in the same physical space. Efficient cooling allows you to support higher power densities (watts per square meter). This lets you add more servers, storage devices, and other hardware without needing more space. This way, you make the most of your current setup and can postpone expensive expansions.
  • Extended Equipment Lifespan: Overheating causes premature hardware failure in Data Centres. By maintaining optimal temperatures, you mitigate the risk of heat-related damage to servers, network devices, and other IT assets. This practice extends your equipment’s lifespan, reduces replacement frequency, and minimises capital expenditure. When you ensure a stable thermal environment, you also improve component performance.
  • Improved Uptime and Reliability: Uncontrolled airflow and hot spots trigger malfunctions, crashes, and downtime. When you prevent overheating and stabilise operating conditions with floor grommets, you create a more reliable Data Centre environment. This approach lowers the risk of unplanned outages, ensures business continuity, and safeguards critical data and applications. As a result, your customers experience greater satisfaction, and you minimise revenue loss.
  • Enhanced Sustainability: Data Centres consume vast amounts of energy, so reducing their carbon footprint is essential. By lowering energy consumption with optimised cooling, you help your Data Centre meet its environmental sustainability goals. Using less energy lowers greenhouse gas emissions. It shows your commitment to caring for the environment. This can improve your public image and help you attract clients who care about the environment.
  • Better Return on Investment (ROI): When you implement floor grommets, you invest a small amount for long-term gains. The energy savings alone can quickly offset your initial spend. Furthermore, you will benefit from extended equipment life, higher capacity, and reduced operational risks—all of which boost your return on investment.

Floor grommets provide a simple and effective solution for your Data Centre. They offer both short and long-term benefits.

Conclusion

In conclusion, floor grommets do far more than serve as simple accessories; they play an essential and integral role in achieving truly effective airflow management within raised floor Data Centres. By sealing cable openings and stopping bypass airflow, floor grommets create many positive benefits for the whole Data Centre.

They significantly improve cooling efficiency which directly reduces energy consumption, lowers operational costs, and shrinks the Data Centre’s carbon footprint. When you use grommets well, you create a stable temperature. This helps your equipment work better and last longer. It also reduces downtime for your IT systems.

These advantages combine to create a more cost-effective and sustainable Data Centre operation, increase profitability, and support environmental responsibility. When you invest in high-quality floor grommets and ensure their proper implementation—including regular inspections and maintenance—you make a strategic investment, not just an expense.

Taking this important step helps you improve Data Centre performance. It also protects vital IT infrastructure. This ensures long-term success in today’s challenging and eco-friendly digital world.
